#713 HOn3 Scale Split Shank Plastic Couplers - Rust

Availability: In stock
37 in stock
#713 HOn3 Scale Split Shank Plastic Couplers - Rust is available to buy in increments of 1

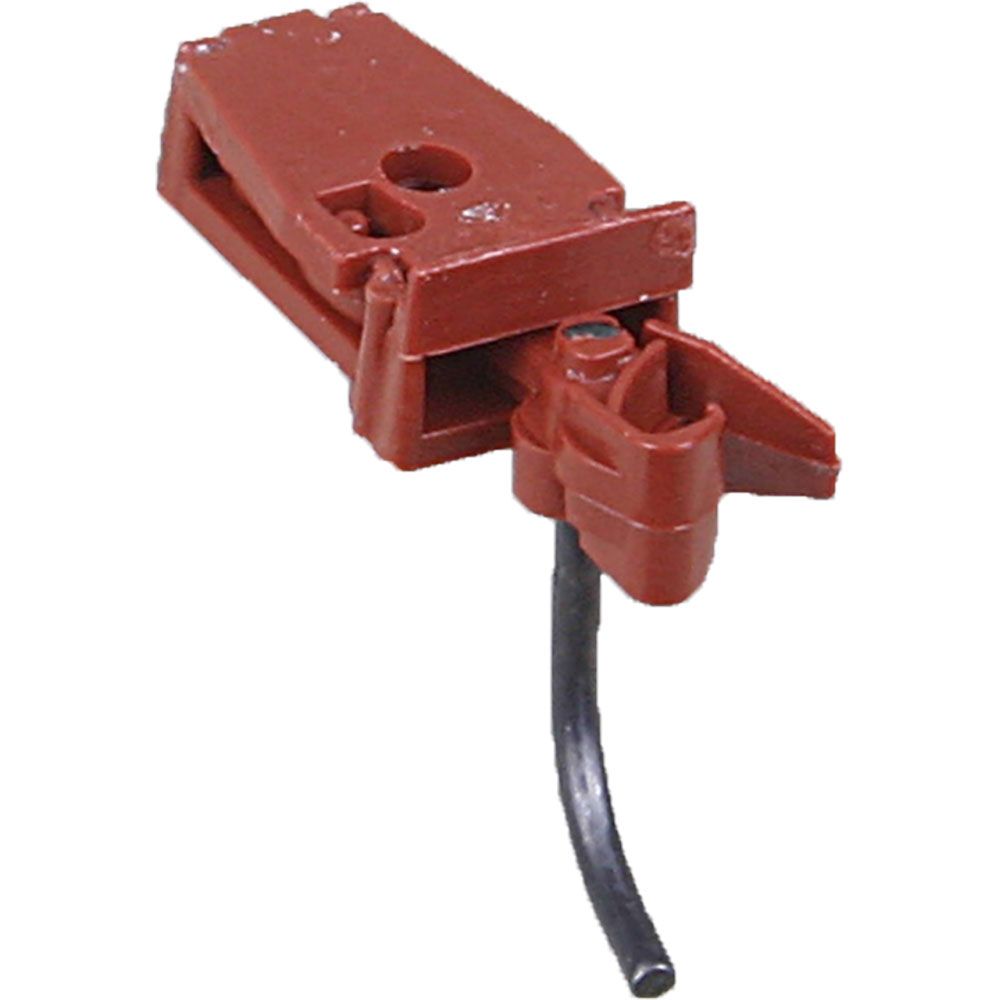

#713 Split Shank Plastic Couplers - HOn3 Coupler - Rust

HOn3-Scale      MAGNE-MATIC

The #713 & #714 Split Shank Plastic Coupler will work anywhere a #705 Metal Coupler will work.

This industry leading coupler features a plastic coupler and coil centering spring and comes complete with a insulated draft gearbox and lid. The #713 Magne-Matic® Split Shank Couplers may be body mounted on any flat surface; HOn3-Scale locomotives or rolling stock.
(The #702 Coupler Assembly Fixture can be used to ease assembly)

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

Also adaptable to TT-Scale

Unassembled Kit

#713 Instructions

Rust colored

Two pair per package

UPC: 765484007135

USA Flag  Made in the U.S.A.


0-48 or 0-80 screws are the most commonly used screws.
Screw length will very depending on the mounting situation.

Package Includes:

  • (2) Pair Unassembled Split Shank Couplers
  • (2) Pair Unassembled Gearboxes & Lids
  • (5) Each #713 Trip Pins
  • (6) Each #636 Centering Springs
  • (4) Each #402 Self Tapping Screws 0-48 x 1/4"

#713 Split Shank Coupler Features:
Material  -   Plastic
Shank Length  -   (3/16")
Coupler Offset  -   Centerset

#713 Gearbox Features:
Material  -   Insulated Plastic
Dimensions  -   27/64"L x 15/64"W x 1/8"H

Mounting Specifications:
Mounting Height  -   11/32"
Centerline  -   9/32"
Trip Pin Height  -   1/32"
Center Hole  -  0-48 Screw. (Screw length will vary) no less then 1/4" length.

Recommended Tools:

Delayed Magnetic Uncoupling

WARNING WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

WARNING WARNING: CHOKING HAZARD - Small Parts - Not for children under 14 years.

Kadee Quality Products Co. products are not toys and are not intended for children under 14 years old.
