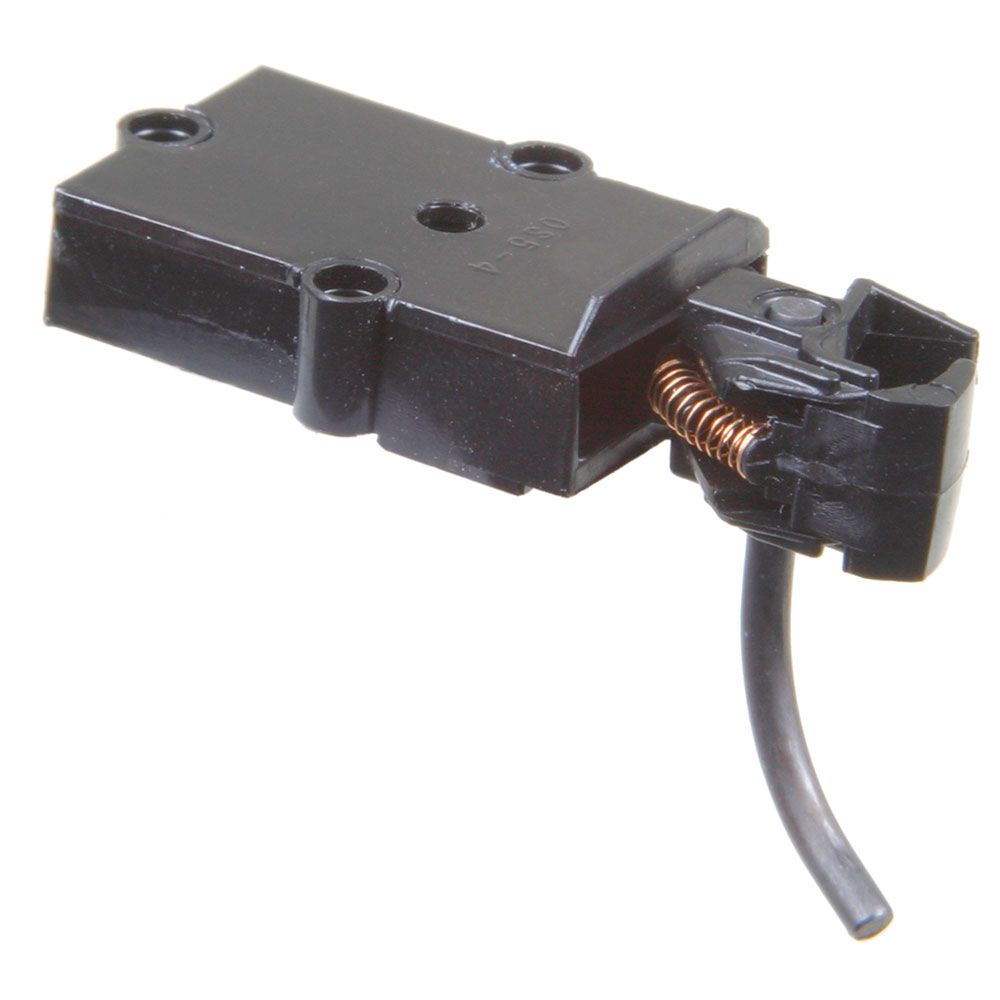

#803 On3 Scale Plastic Couplers & Gearboxes - Black

$9.59
Availability: In stock
146 in stock
SKU
803
#803 On3 Scale Plastic Couplers & Gearboxes - Black is available to buy in increments of 1

#803 Plastic Couplers & Plastic Gearboxes - Black - On3 Scale



On3 Scale      MAGNE-MATIC

This industry leading coupler features #803 Plastic Couplers, and #846 On3 Scale centering spring and comes complete with Plastic Gearboxes and lids. 0-48 Mounting Screws are included.

#803 Coupler Instructions

Two pair per package

UPC: 765484008033

USA Flag  Made in the U.S.A.

On3-Scale

  • Simple Drop in Design
  • Trouble Free Operation
  • World-Renowned Quality & Performance
  • They just Last & Last & Last...



Package Includes:

  • (4) Each #803 Plastic Couplers - Black
  • (4) Each #803 Plastic Gearboxes & lids - Black
  • (6) Each #846 On3 Scale Centering Springs
  • (2) Extra #847 On3 Scale Knuckle Springs
  • (8) Each 0-48 x 3/8 Screws


#803 Plastic Coupler Features:
Material  -   Plastic
Shank Length  -   (17/64") (Back of head to center hole of Draft Gearbox)
Coupler Offset  -   Centerset
Centering Spring  -  #846 On3 Scale Centering Springs
Knuckle Spring  -   #847 On3 Scale Knuckle Springs
Works In Place of  -   #807 Couplers
Works With  -   On3 Scale Draft Gearboxes

#803 Plastic Draft Gearboxes & Lids Features:
Material  -   Plastic
Dimensions  -  37/64"L x 3/8"W x 11/64"H
Works With  -   #808 Couplers

Mounting Specifications:
Mounting Height  -   5/8"
Centerline  -  19/16"
Trip Pin Height  -   1/16"
Mounting Holes  -   0-48 or 0-80 screws are the most commonly used screws. (Screw length will vary)

Recommended Tools:


Delayed Magnetic Uncoupling


Distributor must purchase in bundles of 6
