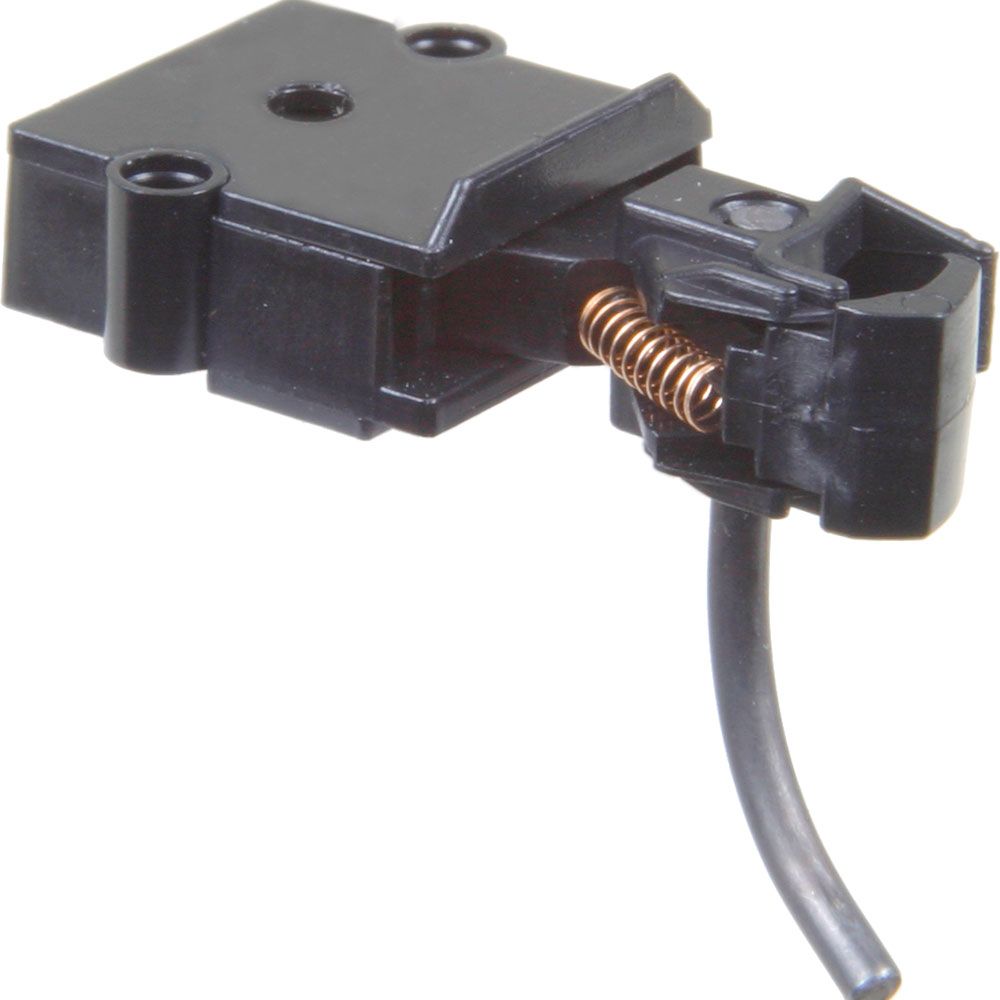

#806 O Scale Short Centerset Plastic Couplers with Plastic Short Gearboxes - Black

$5.99
Availability: In stock
22 in stock
SKU
806
#806 O Scale Short Centerset Plastic Couplers with Plastic Short Gearboxes - Black is available to buy in increments of 1

#806 Short Centerset Plastic Couplers with Plastic Short Gearboxes - Black - O Scale



O Scale      MAGNE-MATIC

This industry leading coupler features Original Style Head Short Centerset Plastic Couplers, and #850 O Scale centering spring and comes complete with Short Plastic Gearboxes and lids. The #743 Metal Coupler may be mounted with the included Short Plastic Gearbox (#806 type).

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

#806 Coupler Instructions

One pair per package

UPC: 765484008064

USA Flag  Made in the U.S.A.

O-Scale

  • Simple Drop in Design
  • Trouble Free Operation
  • Compatible with All Kadee® O-Scale Couplers
  • World-Renowned Quality & Performance
  • They just Last & Last & Last...



Package Includes:

  • (2) Each #806 Original Style Plastic Couplers - Short Centerset Shank
  • (2) Each Short Plastic Gearboxes & lids (#806 type)
  • (3) Each #850 O Scale Centering Springs

#806 Plastic Coupler Features:
Material  -   Plastic
Shank Length  -   Short (47/64") (Knuckle pulling face to center hole of Draft Gearbox)
Coupler Offset  -   Centerset
Centering Spring  -  #850 O Scale Centering Springs
Knuckle Spring  -   #845 O Scale Knuckle Springs
Head  -   Original Style Head
Works In Place of  -   #743 O Scale Short Centerset Shank Couplers
Works With  -   #806 type Draft Gearboxes

Plastic Short Draft Gearboxes & Lids Features (#806 type):
Material  -   Plastic
Dimensions  -   17/32"L x 1/2"W x 7/32"H
Works With  -   #743, & #806 Couplers

Mounting Specifications:
Mounting Height  -   25/32"
Centerline  -   1 1/16"
Trip Pin Height  -   1/16"
Mounting Holes  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)

Recommended Tools:


Delayed Magnetic Uncoupling


WARNING WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

WARNING WARNING: CHOKING HAZARD - Small Parts - Not for children under 14 years.

Kadee Quality Products Co. products are not toys and are not intended for children under 14 years old.
