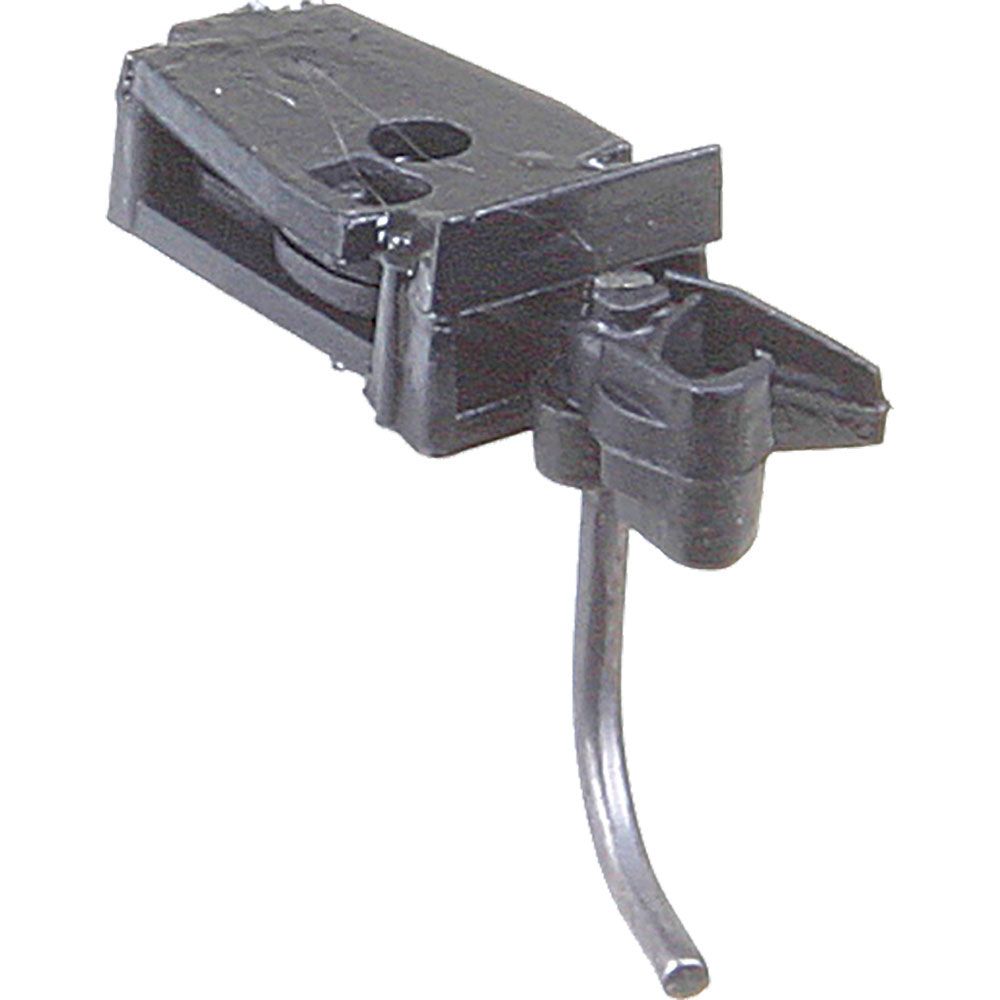

#714 HOn3 Scale Split Shank Plastic Couplers - Black
#714 Split Shank Plastic Couplers - HOn3 Coupler - Black
The #713 & #714 Split Shank Plastic Coupler will work anywhere a #705 Metal Coupler will work.
This industry leading coupler features a plastic coupler and coil centering spring and comes complete with a insulated draft gearbox and lid. The #714 Magne-Matic® Split Shank Couplers may be body mounted on any flat surface; HOn3-Scale locomotives or rolling stock.
(The #702 Coupler Assembly Fixture can be used to ease assembly)
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
Also adaptable to TT-Scale
Two pair per package
Made in the U.S.A.
0-48 or 0-80 screws are the most commonly used screws.
Screw length will very depending on the mounting situation.
- (2) Pair Unassembled Split Shank Couplers
- (2) Pair Unassembled Gearboxes & Lids
- (5) Each #714 Trip Pins
- (6) Each #636 Centering Springs
- (4) Each #402 Self Tapping Screws 0-48 x 1/4"
|Shank Length||- (3/16")|
|Coupler Offset||- Centerset|
|Material||- Insulated Plastic|
|Dimensions||- 27/64"L x 15/64"W x 1/8"H|
|Mounting Height||- 11/32"|
|Trip Pin Height||- 1/32"|
|Center Hole||- 0-48 Screw. (Screw length will vary) no less then 1/4" length.|
- #704 Coupler Height Gauge
- #231 Greas-em Dry Graphite Lubricant
- #237 Coupler Trip Pin Pliers
- #239 Mark V Gripper
- #240 Double Headed Pin Vise
- #241 Dual Tool
Distributor must purchase in bundles of 6
WARNING: CHOKING HAZARD - Small Parts - Not for children under 14 years.
Kadee Quality Products Co. products are not toys and are not intended for children under 14 years old.
