#815 On30 Multi-Purpose Coupler Height Gauge with On3 Coupler

Availability: In stock
8 in stock
#815 On30 Multi-Purpose Coupler Height Gauge with On3 Coupler is available to buy in increments of 1

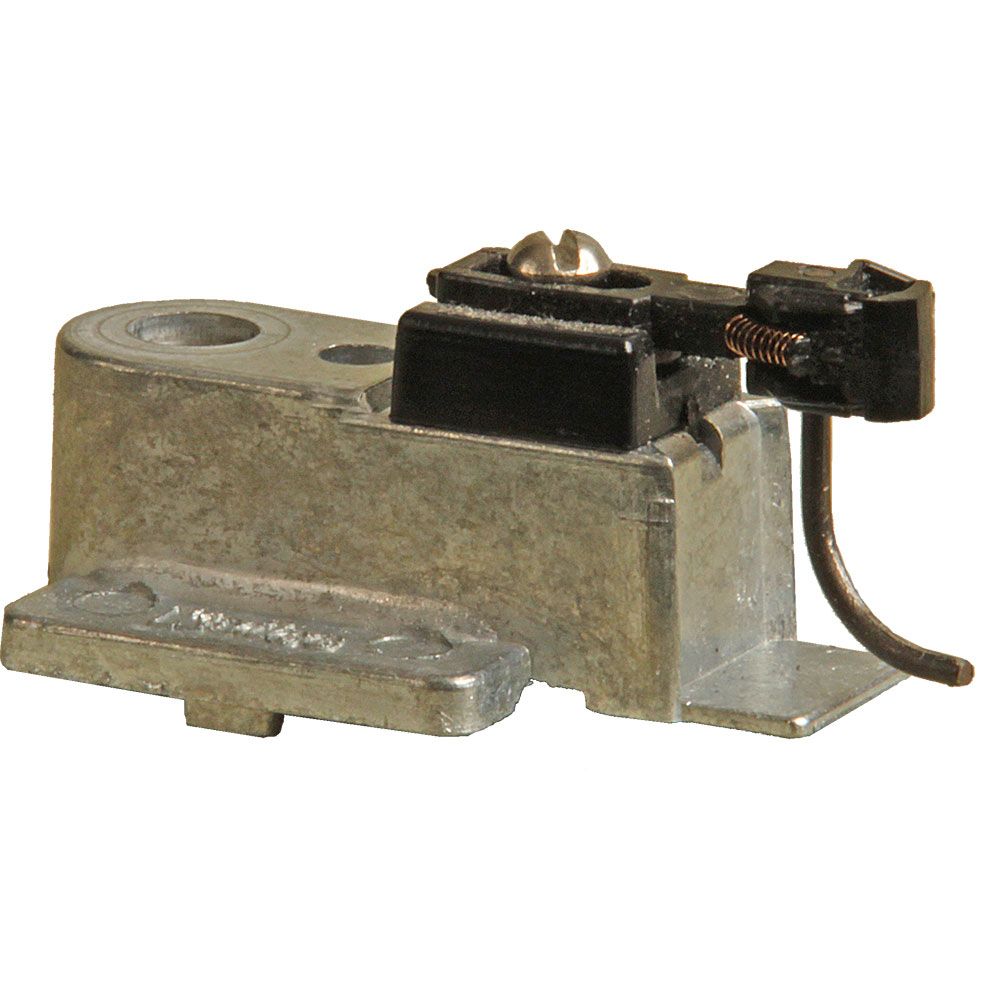

#815 Multi-Purpose Coupler Height Gauge - On30 Scale

On30 Scale      MAGNE-MATIC

#815 Multi-Purpose Coupler Height Gauge - On30 Scale

A must have tool for gauging correct coupler, trip pin, and permanent uncoupler heights for achieving trouble free coupler performance.

"Takes the guess work out"

Multi purpose gauge. Four tools in one.
1. Provides instant visual reference of proper coupler height.
2. Accurately measures proper trip pin height above rail.
3. Built-in track gauge.
4. Movable dowel tests Kadee® Magne-Matic® Uncoupler height and registers the needed adjustmen

Track not included

#815 Instructions

One per package

UPC: 765484008156

USA Flag  Made in the U.S.A.

On30 Scale

Package Includes:

  • (1) each #803 Coupler only
  • (1) each #815 Spacer
  • (1) each #205 Height Gauge Base (uncolored)
  • (1) each 2-56 x 1/2" Screw
  • (1) each Knuckle Spring

Delayed Magnetic Uncoupling

Most of the popular On30 models on the market today are made to use HO Scale couplers like the (NO.5® or #148) mounted at the HO scale coupler height. However, there are many that use regular On3 couplers. Since On30 models run on HO gauge track you need to use our #205 or #206 HO Coupler Height Gauge when using HO size of coupler for On30 models or our #815 Coupler Height Gauge when using On3 #803 or #807 Couplers on On30 models. If you are trying to run On30 models running HO Scale couplers and On30 models running On3 Scale couplers you will have to choose one scale and convert all the cars to the scale scale of coupler and custom mount the couplers appropriately. It is probably easiest to convert the On30 models to HO Scale since it should be just a mater of shimming the HO Scale coupler down to the appropriate height.
