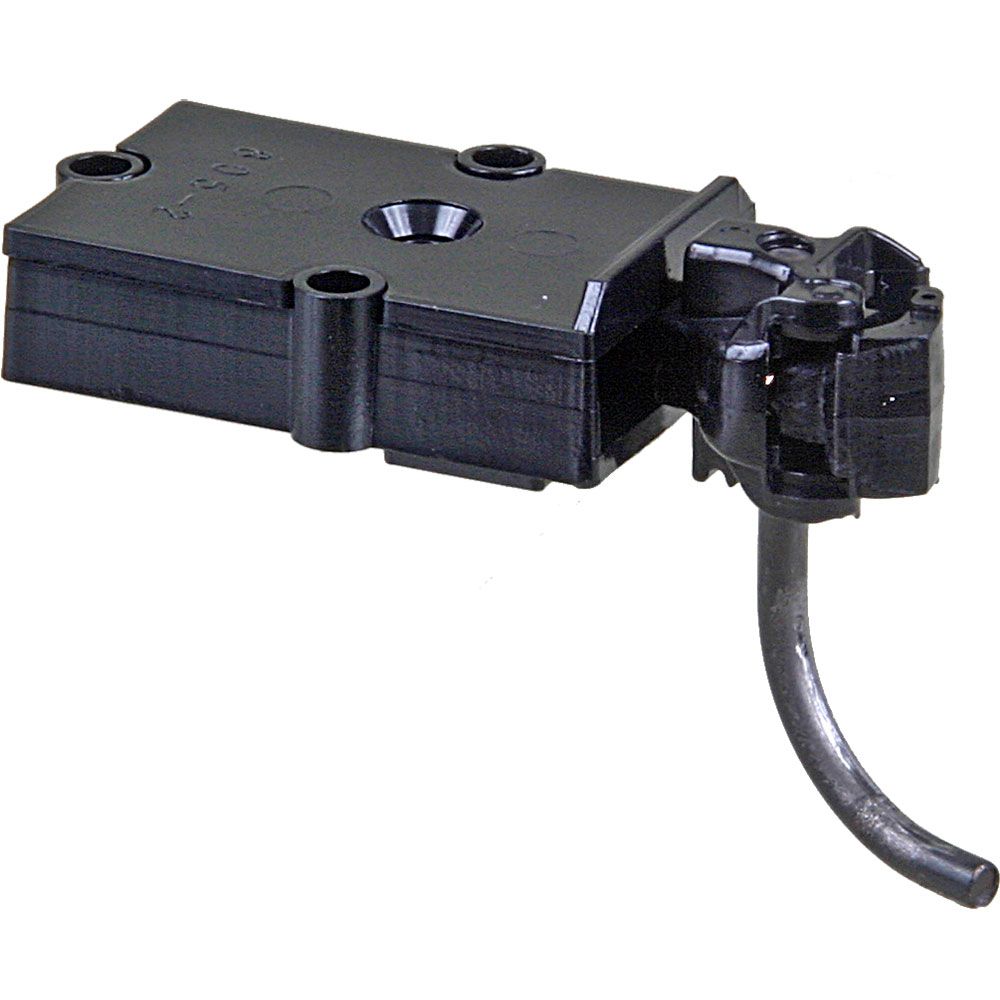

#1906 1 Scale Type E Straight Centerset Shank Couplers with Standard Body Mount Gearboxes - Black
#1906 Type E Straight Centerset Shank Couplers with Body Mount Gearboxes - Black - 1 Scale
This industry leading coupler features New Generation AAR Type "E" Head Straight Centerset Shank Couplers, and #879 1 Scale centering spring and comes complete with #1920 Body Mount Gearboxes and lids.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
One pair per package
Made in the U.S.A.
- AAR Type "E" Coupler
- Simple Drop in Design
- Hidden Knuckle Spring
- Trouble Free Operation
- Compatible with All Kadee® 1-Scale Couplers
- World-Renowned Quality & Performance
- They just Last & Last & Last...
- Patent number 7,810,660 B1
- (2) Each #1900R Type New Generation AAR Type "E" - Straight Centerset Shank
- (2) Each #1920R Body Mount Gearbox & lids
- (3) Each #879 Centering Springs
- (4) Each #4 x 3/4" Screws
|Shank Length||- (9/16") (Back of the Coupler Head to center hole of Draft Gearbox)|
|Coupler Offset||- Centerset|
|Centering Spring||- #879 #1 Scale Centering Springs|
|Head||- New Generation AAR Type "E"|
|Works In Place of||- #1906, #1906R, & #820 1 Scale Straight Centerset Couplers|
|Works With||- #1920, #1920R Draft Gearboxes|
|Dimensions||- 1 1/4"L x 7/8"W x 5/16"H|
|Works With||- #820, #1906, #1906R, & #920 Couplers|
|Mounting Height||- 1 13/64"|
|Centerline||- 1 1/16"|
|Trip Pin Height||- 1/8"|
|Mounting Holes||- #4 Screws are the most commonly used. (Screw length will vary)|
- #829 1 Scale Multi-Purpose Metal Coupler Height Gauge
- #231 Greas-em Dry Graphite Lubricant 5.5 gram tube
- #240 Double Headed Pin Vise
- #241 Dual Tool Manual Uncoupling Tool and Spring Pick
