#29 HO Scale 20-Series Plastic Couplers with Gearboxes - Long (25/64") Overset Shank

$5.99
Availability: In stock
59 in stock
SKU
29
#29 HO Scale 20-Series Plastic Couplers with Gearboxes - Long (25/64") Overset Shank is available to buy in increments of 1

#29 Couplers - Long Overset Plastic Shank



HO-Scale      MAGNE-MATIC


This industry leading coupler features plastic standard coupler with metal knuckle, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The#29 Magne-Matic® Plastic Coupler may be mounted with the included #213 or #232 Gearbox or with most other manufacturers cast-on coupler pockets.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

Refer to our helpful Coupler Conversion Charts to determine the appropriate coupler to use on your model.

20-Series Coupler Instructions
20-Series Chart

Two pair per package

UPC: 765484000297

USA Flag  Made in the U.S.A.

HO-Scale

Package Includes:

  • (2) Pair #29 Plastic Shank Couplers - Long Overset Shank
  • (2) Pair #634 Centering Spring NO.5® Style
  • (2) Pair #213 055" ID & .100" ID Bushing/Sleeves
  • (2) Pair #212 Talgo Truck Adaptors
  • (2) Pair #213 Gearboxes
  • (2) Pair #232 Gearboxes
  • (2) #622 Knuckle Springs

#29 Plastic Coupler Features:
Material  -   Metal Knuckle, Plastic Coupler Shank
Shank Length  -   Long (25/64") (center hole to back of coupler head)
Coupler Offset  -  Overset
Knuckle Spring  -   #622
Centering System  -   Standard Shank
Centering Spring  -   #634 Centering Spring NO.5® Style
Head  -   Standard Head
Works In Place of  -  #149, Long Overset "clone" couplers
Works With  -   #213, #232, #234, #242, most manufacturer cast-on draft gearboxes


#212 Talgo Truck Adaptors:
Material  -   Insulated Plastic
Works With  -   NO.5®, #58, 20-Series and all Whisker® Couplers
To check coupler height, set the coupler into the talgo truck pocket and hold it level as possible and check the coupler height with a #205 or newer #206 HO coupler height gauge.
NOTE: So it is important to check coupler height and make sure it is correct "before" you insert the talgo truck adaptor, because it's almost impossible to remove without breaking something.

#213 Plastic Draft Gearboxes:
Material  -   Insulated Plastic
Dimensions  -   25/64"L x 5/16"W x 3/32"H
Works With  -   NO.5®, #58, 20-Series and all Whisker® Couplers

#232 Plastic Draft Gearboxes & Lids Features:
Material  -   Insulated Plastic
Dimensions  -   29/64"L x 19/64"W x 7/64"H
Works With  -   NO.5®, #58, 20-Series and all Whisker® Couplers

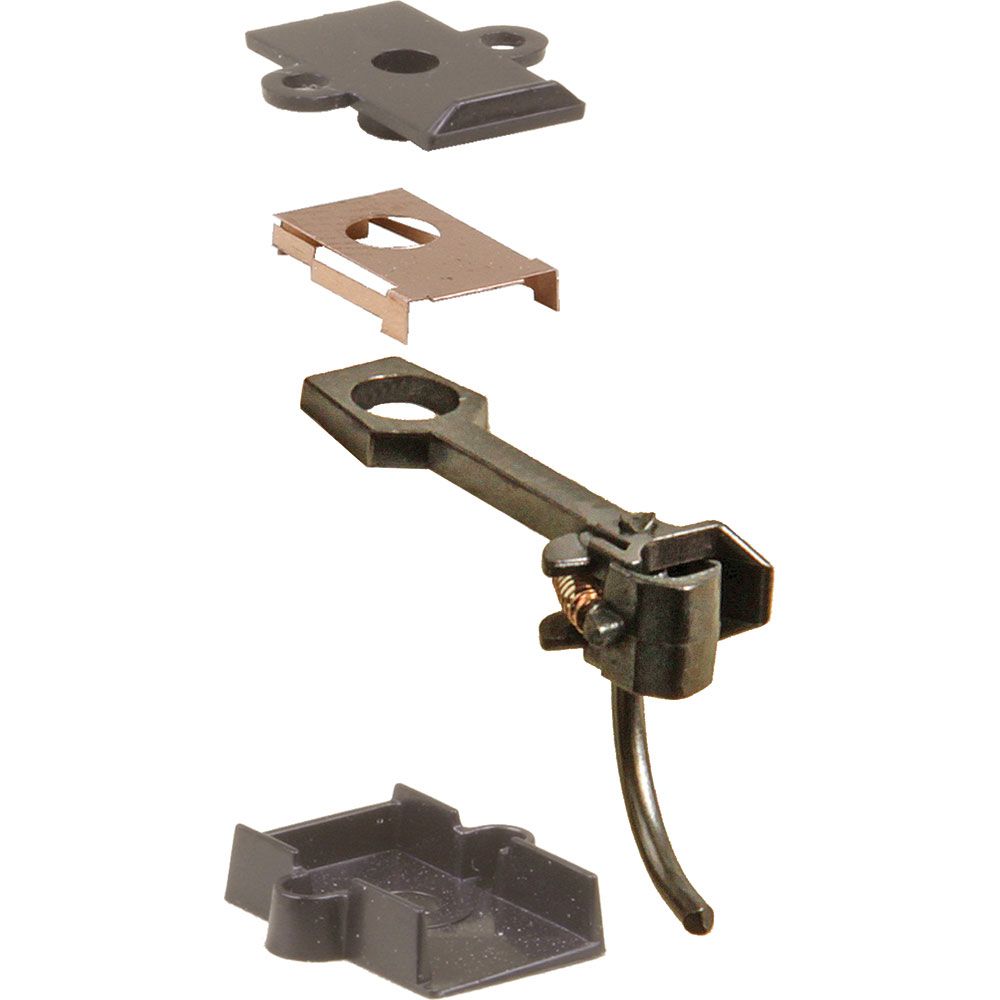

#29 with a #212 Talgo Truck Adaptor. Mounting Specifications:
Centerline  -   25/64"
Trip Pin Height  -   1/32"

#29 in a #213 monted on bottom. Mounting Specifications:
Mounting Height  -  1/2"
Centerline  -   25/64"
Trip Pin Height  -   1/32"
Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)

#29 in a #213 monted on top. Mounting Specifications:
Mounting Height  -   13/32"
Centerline  -   25/64"
Trip Pin Height  -   1/32"
Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)

#29 in a #232 Mounting Specifications:
Mounting Height  -   1/2"
Centerline  -   25/64"
Trip Pin Height  -   1/32"
Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)
Side Holes  -   0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary)

Recommended Tools:


Delayed Magnetic Uncoupling


WARNING WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

WARNING WARNING: CHOKING HAZARD - Small Parts - Not for children under 14 years.

Kadee Quality Products Co. products are not toys and are not intended for children under 14 years old.
