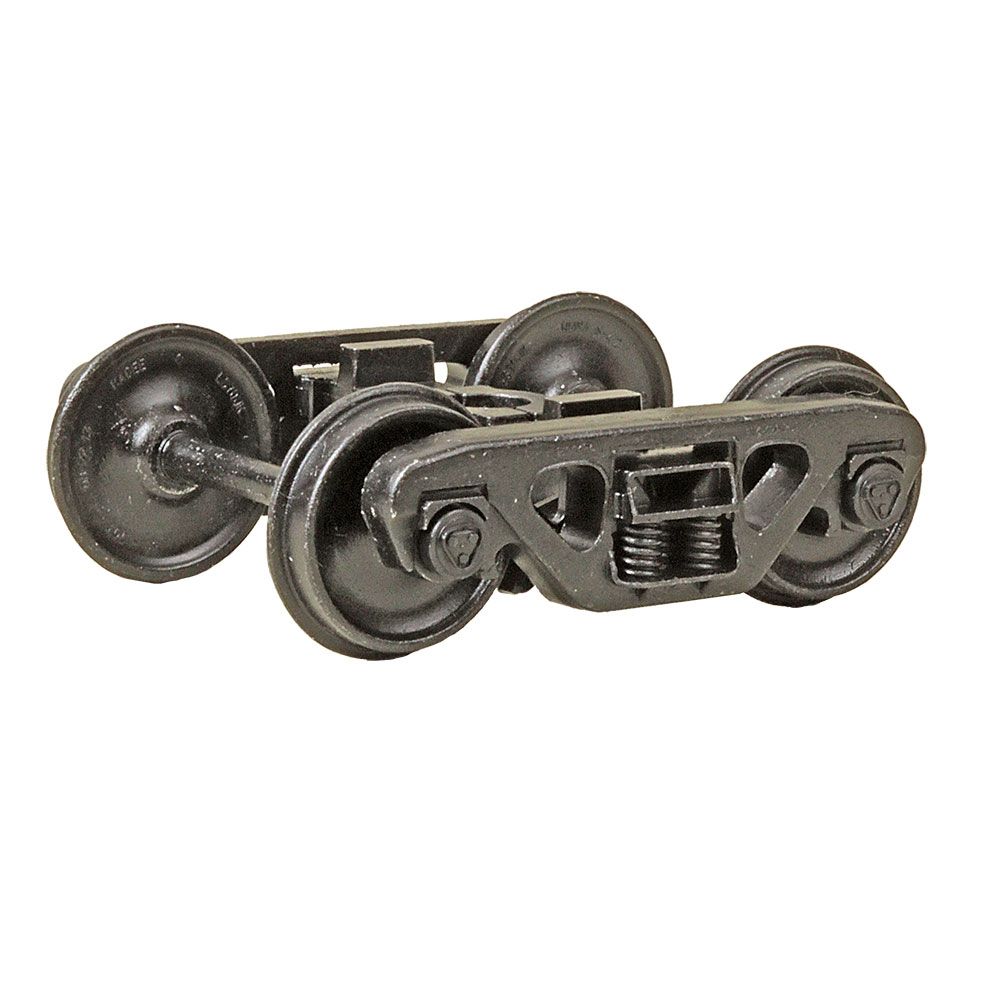

#753 O Scale 2 Rail Barber S-2 Roller bearing Metal Trucks with 33" Smooth Back Metal Wheels

#753 O Scale 2 Rail Barber S-2 Roller bearing Metal Trucks with 33" Smooth Back Metal Wheels
O-Scale
70-Ton Freight Truck

1 Pair

Mounts with a #4-56 x 3/8 screw. or optional #770 Bolstor Adapter Sold Seperatly

Introduced in the late 1950’s - Used in interchange even today.

The Barber S-2 70-ton Roller Bearing truck is a logical development from the original friction-bearing truck first introduced in the 1940s. Our truck is based on a prototype built in 1967, however, the basic design was first introduced in the late 1950s. The sturdiness of the Barber® S-2 truck is evidenced by the forty-plus years it has rode the rails to date. A careful observer will spot these trucks in interchange use today. This truck can be used under almost any pre-1970 built 70-ton rolling stock.

Truck Features
• All Metal Non-Magnetic 2 Piece Self Equalizing Trucks
• O Scale 33 in. Smooth Back All Metal Non-Magnetic Black Wheels with Free Rolling Insulated Axles
• Clip on pads & brake rigging
• Bearing caps rotate
• Mounting Adapters for Atlas Included
• Manufactured and assembled entirely in the U.S.A.
• Patent number 7,434,518 B2

Truck Mounting Adapters Not Required for
Intermountan
Weaver

Truck Mounting Adapters Included
Older Atlas
Newer Atlas

Truck #770 Bolstor Adapter Sold Seperatly
Lionel (metal or plastic floor)
MTH (metal or plastic floor)
Rail King (metal or plastic floor)
K-Line (metal or plastic floor)
Williams (metal or plastic floor)

Once Kadee trucks have been fitted to the car, always check the coupler height. Coupler height modification will probably be required due to non-standardized original equipment manufacturing in O-Scale. Always check coupler height and trip pin clearance using the #812 Kadee® Coupler Height Gauge for O-Scale, and check for the correct coupler height and trip pin clearance. If needed only use a Dry Graphite Lubricant such as our #231 “Greas-em” to lubricate the trucks couplers or moving parts.

Disclaimer: These instructions are guidelines for adapting Kadee® all metal 2-piece trucks to O-Scale rolling stock. Some additional modifications may be required and there is no express warranty that Kadee® trucks will work in all applications.

#753 Instructions

UPC: 765484007531
