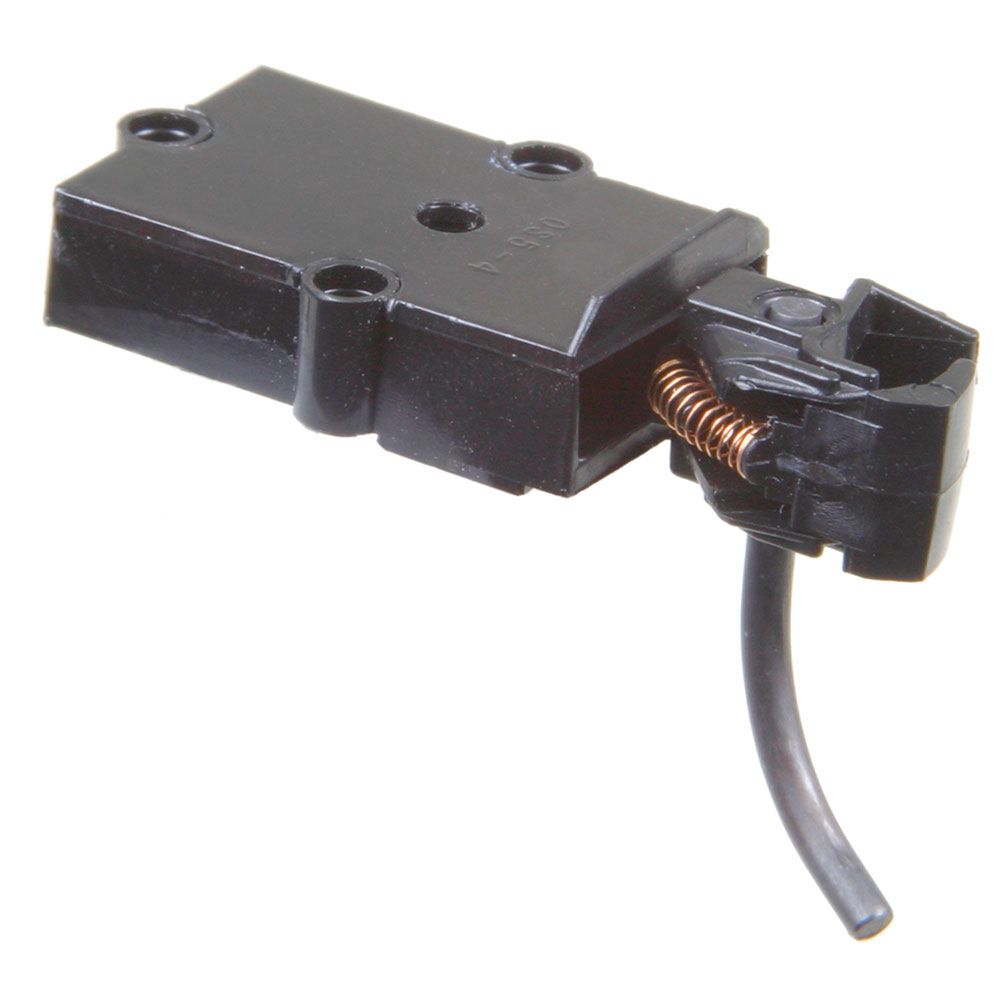

#802 S Plastic Coupler & Gearbox - Black

$9.59
Availability: In stock
176 in stock
SKU
802
#802 S Plastic Coupler & Gearbox - Black is available to buy in increments of 1

#802 Plastic Couplers & Plastic Gearboxes - Black - S Scale



S Scale      MAGNE-MATIC

This industry leading coupler features Plastic Couplers, and #846 S Scale centering spring and comes complete with Plastic Gearboxes and lids. 0-48 Mounting Screws are included.

#802 Coupler Instructions

Two pair per package

UPC: 765484008026

USA Flag  Made in the U.S.A.

S-Scale

  • Simple Drop in Design
  • Trouble Free Operation
  • World-Renowned Quality & Performance
  • They just Last & Last & Last...



Package Includes:

  • (4) Each #802 Plastic Couplers - Black
  • (4) Each #802 Plastic Gearboxes & lids - Black
  • (6) Each #846 S Scale Centering Springs
  • (2) Extra #847 S Scale Knuckle Springs
  • (8) Each 0-48 x 3/8 Screws
  • (8) Each 0-48 x 1/4 Screws


#802 Plastic Coupler Features:
Material  -   Plastic
Shank Length  -   (9/32") (Back of head to center hole of Draft Gearbox)
Coupler Offset  -   Centerset
Centering Spring  -  #846 S Scale Centering Springs
Knuckle Spring  -   #847 S Scale Knuckle Springs
Works In Place of  -   #808 Couplers
Works With  -   S Scale Draft Gearboxes

#802 Plastic Draft Gearboxes & Lids Features:
Material  -   Plastic
Dimensions  -  37/64"L x 3/8"W x 11/64"H
Works With  -   #808 Couplers

Mounting Specifications:
Mounting Height  -   19/32"
Centerline  -  17/32"
Trip Pin Height  -   1/16"
Mounting Holes  -   0-48 or 0-80 screws are the most commonly used screws. (Screw length will vary)

Recommended Tools:


Delayed Magnetic Uncoupling
