#169 Rectifier Kit

Availability: In stock
16 in stock
#169 Rectifier Kit is available to buy in increments of 1
Rectifier Kit
Converts AC or DC track current to polarized DC current suitable for LED lighting and other electronic devices that require DC current.

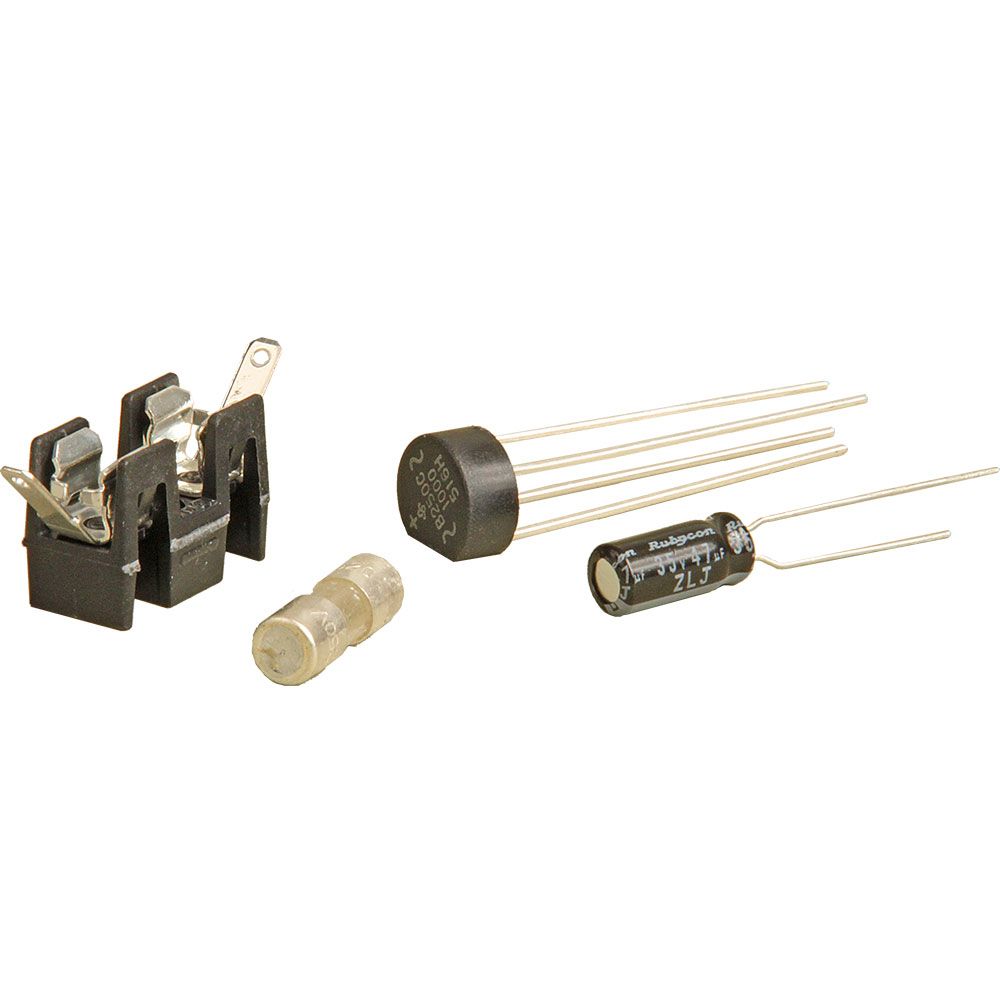

Includes: 1 Rectifier 1A 400V, 1 Capacitor 47UF 35V, 1 Fuse Holder 2AG Block 300V, 1 Fuse 250mA 250V 2AG

1 Each

Kadee HO Pickup Truck Trouble Shooting

One side of each bronze electrical pickup is marked with a red dot. This red dot indicates the side that picks up the current from the track. When installing the Pickup Trucks on your rolling stock These marks MUST be on opposite rails otherwise an electrical short will occur and the Pickup Trucks may be damaged!
Problems: Possible Cause: Possible Solution:
Flickering Lights Dirty Track & Wheels   Clean Track & Wheels
Poor connection in wiring Check all wiring connections
Insufficient connection between
bronze pickups and axles
Check that bronze pickup fingers
are touching axle
Capacitor needed A capacitor may be needed to
stabilize voltage. (see Kadee HO
Pickup Truck Wiring Diagram)
Derailments Uneven pickup tension on axles  Check that all bronze pickups
have equal tension against axle
Crooked or kinked pickup wire Check that pickup wire is not
binding where it protrudes
through the floor of the car
LED Resistor Calculator Electronics for Absolute Beginners

UPC: 765484001690
